HERCULES 6.5 PLUS
The HERCULES 6.5 PLUS lifting tower is the ideal solution for lifting sound equipment, lighting and heavy structures at events. With a maximum load capacity of 500kg and a maximum height of 6.50m, this tower offers exceptional performance and guaranteed safety.
Designed as part of the HERCULES Series, it features a front loading system for easy access and lifting of equipment from the ground. Perfect for sound systems, lighting and truss structures, it greatly facilitates the work in any event.
Certified to current standards and manufactured from high quality materials, the HERCULES 6.5 PLUS guarantees safe and durable lifting. Its oversized components ensure a long product life, offering reliable performance in every use.
Trust the HERCULES 6.5 PLUS to take your production to the next level. Its robustness, load capacity and safety make it the perfect choice for sound and lighting professionals - order now and experience the difference!
| Maximum height | 6,50m |
| Maximum load | 500kg |
| Height folded | 1,69m |
| Weight | 198kg |
| Winch | AL-KO Type OPTIMA 1150kg |
| Workspace | 2,22 x 2,07m |
| Minimum charge | 25kg |
| Material | Aluminum alloy AL Si 6106 / T6 |
| Cable | Galvanized steel under EN 12385-4. |
| Maximum cable load | 2.870kg |
| Cable twisting resistance | 1.770N/mm² |
| Cable diameter | 6mm |
| Cable composition | 7×19+0 |
| Security system | Inner pendulum and external trigger in sections. |
| Bubble level | to vertically adjust the tower. |
| Closed base area | 0,52 x 0,62m |
| Leg attachment | Safety pins |
Leg base trigger: The leg trigger allows it to be anchored to the base more quickly using a push system, replacing the old and uncomfortable ring triggers.
Polyamide plates: The plates are made of polyamide. This material offers greater resistance than metal and does not wear out. They rest on surfaces without damaging floors, carpets, etc.
Safety triggers: The triggers prevent the load from collapsing. They also allow selecting different heights and raising all bars evenly, distributing the load from the main bar to the last, which extends the tower’s lifespan.
Bubble level: The bubble level on the base allows for more comfortable and precise tower stabilization.
Reinforced base: All our towers feature a reinforced base that can support heavy weights and high elevations.

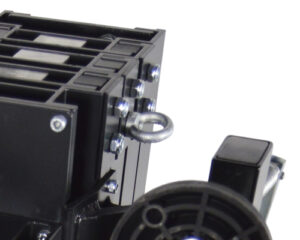

Ring: Included in the AT and HERCULES series. It allows cables to be secured to any surface or fixed object, providing greater security to the tower.
Winch: Our winches are manufactured by high-quality and well-known companies. They are durable and long-lasting. Additionally, they are oversized for greater safety and better cable traction.
Fixation: Prevents the carriage from moving during transport.
Safety pendulum: The front-loading models include this internal safety system, which automatically locks the tower when it detects a sudden fall of the profiles in case of cable breakage or cut.

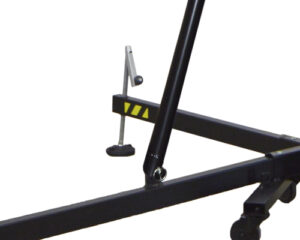

Front braces: Provide greater stability and strength to the tower.
